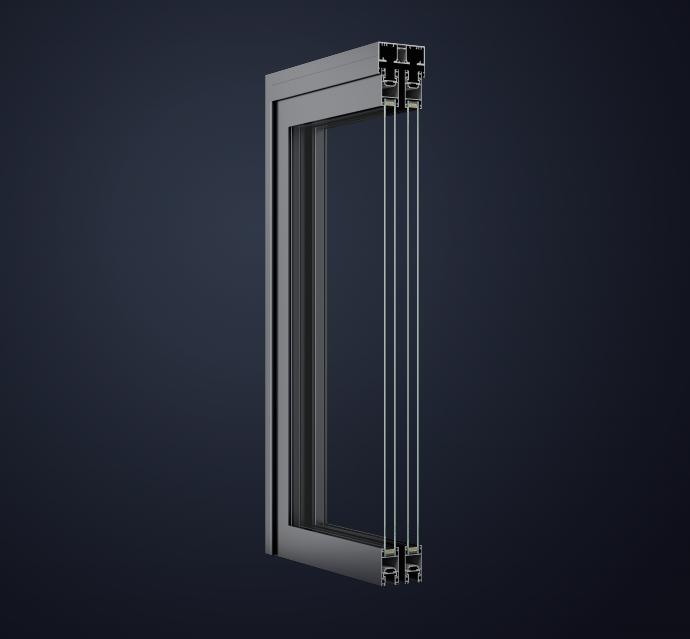

SLIDING DOOR SERIES：MODERN GRACE
·65mm Classic Medium Narrow+Hollow Glass
·Four layer combined sealing system
·Embedded structure of framed fan
·Military grade dual wheel sliding shaft+equipped with rebound buffer block
Product Features CHARACTERISTICS
▶ Adopting a classic 65mm narrow design, paired with insulated glass, it has a stable appearance, sound insulation and heat insulation, balancing practicality and texture.
▶ Equipped with a four layer combination sealing system, the seal is tighter, effectively soundproof, dustproof, and windproof, making home more comfortable.
▶ The embedded structure of the frame fan provides a smoother closure, high safety, and dual improvement in overall aesthetics and sealing.
▶ Equipped with military grade dual wheel sliding shafts and rebound buffer blocks, the push and pull are smooth and effortless, the switch is gentle and silent, durable and worry free.
| PARAMETER | ||||||||
| Occupying wall width | wall thickness of profile | Optional track types | glass configuration | Fan thickness * Fan width | Opening method | gauze | Maximum number of squares | Optional Colors |
| Single track 48mm | frame 1.2 mm fan 1.4 mm | Stainless steel teack (slotted), low track 10mm, high track 40mm inside and 16mm outside | 4mm+15Ar+ 4mm | 35*65mm | Single track single fan, single track two fan, two track two fan, two track four fan, three track three fan, three track with yarn | 06 Steel Mesh | 2.8㎡ | Fluorocarbon gray, Fluorocarbon deep coffee, Fluorocarbon white skin black, Brazilian rosewood |
| Double track 96mm | ||||||||
| Three tracks 143mm |
