CASEMENT WINDOW SERIES：IMPRESSIONOF PARIS MAX
Product Features

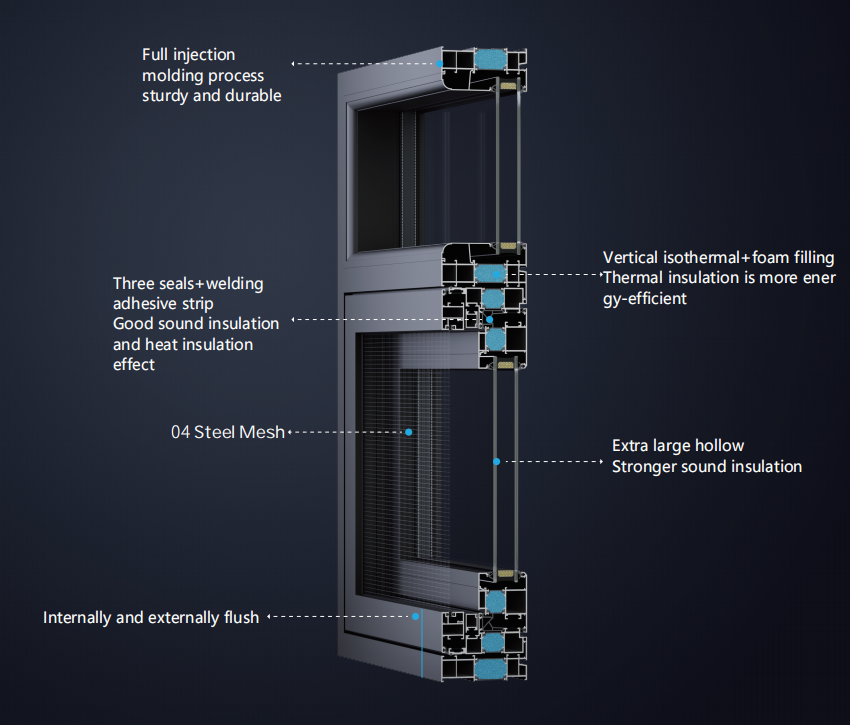

·Internal and external flat design
·35mm border visible surface
·40 ° oblique edge design on the outer side of the glass fan
·Standard large insulated glass
·Dual drainage system
·Glass fan cushion block+waterproof cotton design
Application of Zhongting Seals
·Vertical same isotherm structure
·Polyurethane foam filling for insulation cavity
·Safer glass groove depth
·Fully adhesive system window
·Reinforced load-bearing structure
·Continuous turning sponge foam composite rubber strip outside the glass
·Double layer corner protection design
·Microwave vulcanization seamless welding rubber strip
CHARACTERISTIC
▶ Minimalist design with inner and outer flat frames, 35mm narrow edge design, light luxury and beautiful appearance
▶ Reinforced load-bearing structure, safe and stable, with stronger wind resistance
▶ Vertical isotherm+foam filling, more energy-efficient insulation and heat preservation
▶ Full injection molding process+multiple sealing strips, excellent sound insulation and waterproof effect
▶ Dual drainage system, smooth drainage, eliminating leakage
▶ Equipped with large insulated glass as standard, providing a clear view and better sound insulation
| PARAMETER | ||||||
| Occupying wall width | wall thickness of profile | glass configuration | Opening method | Mesh standard configuration | maximum area | Optional Colors |
| 120mm | 1.8mm | 5mm+27Ar+ 5mm | External opening, upper suspension, external opening and upper suspension | 04 Steel Mesh | 11㎡ | Internal: Fluorocarbon Grey, Fluorocarbon Coffee, Fluorocarbon White, Skin Black, Brazilian Redwood, North American Walnut Optional: Morandi color scheme |
| External: Fluorocarbon ash, Fluorocarbon coffee, Fluorocarbon white |
