CHARACTERISTIC

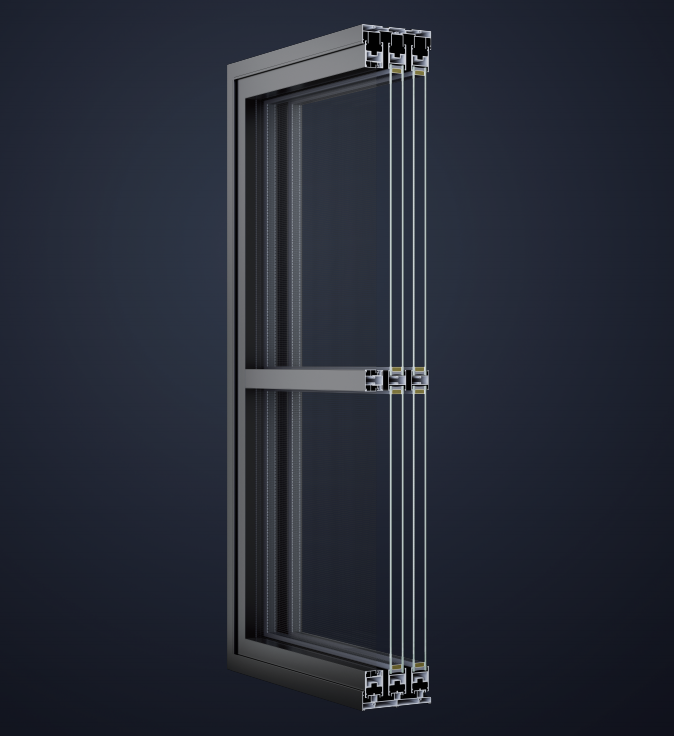

▶ The 61mm classic narrow frame is paired with insulated glass, creating a stylish and stable appearance with outstanding sound and heat insulation effects.
▶ 25mm hook and groove visible surface, ultra thick hook and groove structure, higher strength, dual upgrade of sealing and texture.
▶ The embedded structure of the frame fan ensures a tight and smooth closure, which is aesthetically pleasing and safe, and has stronger overall stability.
▶ Military grade dual wheel sliding shaft with rebound buffer block, smooth and silent push-pull, gentle opening and closing, and more durable.
| PARAMETER | ||||||||
| Occupying wall width | wall thickness of profile | Optional track types | glass configuration | Fan thickness * Fan width | Opening method | gauze | Maximum number of squares | Optional Colors |
| Second track: 128m | 1.8-5.0mm | Stainless steel rail (slotted) Low track 11mm 45mm inside the high track 16mm outside | 5mm+27Ar+ 5mm | 50*62mm | Two tracks, two fans, two tracks, four fans, three tracks, three fans, three tracks, two+1 with yarn, three tracks, four+2 with yarn | 06 Steel Mesh | 8㎡ | Fluorocarbon gray, Fluorocarbon white, Skin black Fluorocarbon electric champagne, Fluorocarbon deep coffee |
| Three track: 192mm |
